产品参数

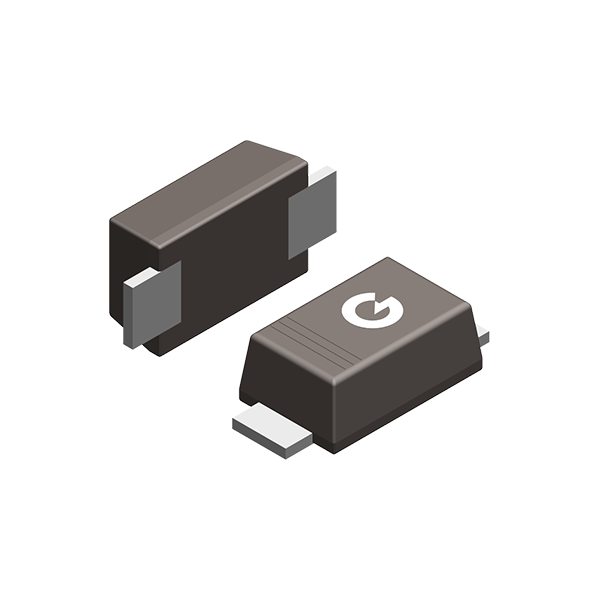

- Package: SOD-123FL
- products_sort:
- AEC Qualified: YES
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Uni-directional
- Condition: 10/1000us
- PPK(W): 400
- VRWM(V) max.: 15
- VBR(V) min.: 16.7
- VBR (V) max.: 18.5
- VC(V) max.: 24.4
- IPP(A): 16.4
- IR(uA) max.: 1
- C (pF) max.: -
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: 瞬态电压抑制二极管
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| SOD-123FL | 12 | 330 | 10 | 0.535 | 335X335X42 | 30 | 1.8 | 355X350X450 | 300 | 19.07 |
