产品参数

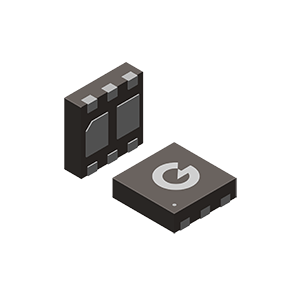

- Package: DFN2020-6LC
- products_sort:
- AEC Qualified: NO
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Dual
- Channel Polarity: N+P
- PD(W) Max.: N:2P:2
- V(BR)DSS(V) Min.: N:20P:-20
- VGS(V) Max.: N:±8 P:±12
- ID(A) Max.: N:5.4P:-5.1
- IGSS(uA) Max.: ±0.1
- VGS(th)(V) Max.: 1.2
- RDS(on)(mΩ)@ 10V Typ.:
- RDS(on)(mΩ)@ 10V Max.:
- RDS(on)(mΩ)@ 4.5V Typ.:
- RDS(on)(mΩ)@ 4.5V Max.: 45
- RDS(on)(mΩ)@ 2.5V Typ.:
- RDS(on)(mΩ)@ 2.5V Max.: 59
- RDS(on)(mΩ)@ 1.8V Typ.:
- RDS(on)(mΩ)@ 1.8V Max.:
- ESD: /
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: 双MOSFETs
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| DFN2020-6LC | 8 | 178 | 3 | 0.09 | 210X210X200 | 45 | 1.55 | 440X440X230 | 180 | |
