产品参数

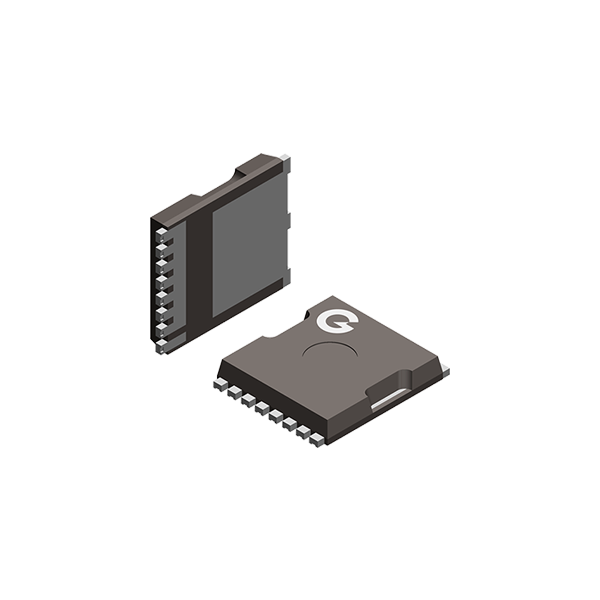

- Package: TOLL
- products_sort:
- AEC Qualified: NO
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single
- Channel Polarity: N
- PD(W) Max.: 250
- V(BR)DSS(V) Min.: 40
- VGS(V) Max.: ±20
- ID(A) Max.: 130
- IGSS(uA) Max.: ±0.1
- VGS(th)(V) Max.: 2
- RDS(on)(mΩ)@ 10V Typ.: 1.1
- RDS(on)(mΩ)@ 10V Max.: 1.4
- RDS(on)(mΩ)@ 4.5V Typ.: 1.4
- RDS(on)(mΩ)@ 4.5V Max.: 1.8
- RDS(on)(mΩ)@ 2.5V Typ.:
- RDS(on)(mΩ)@ 2.5V Max.:
- RDS(on)(mΩ)@ 1.8V Typ.:
- RDS(on)(mΩ)@ 1.8V Max.:
- Qg(nc) Typ:
- @Vgs(V):
- ESD: /
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: 中低压功率MOS
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| TOLL | 24 | 330 | 2 | 1.906 | 335X335X42 | 2 | 2.11 | 480X350X365 | 20 | 6.87 |
