Product
Product parameter

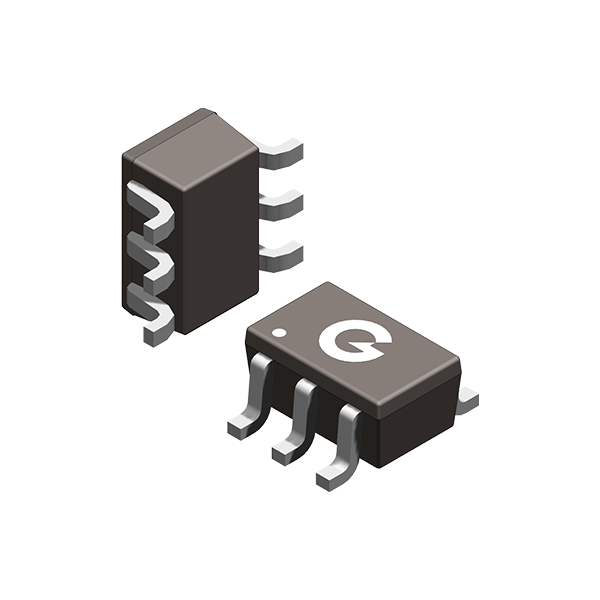

- Package: SOT-363
- products_sort:
- AEC Qualified: NO
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration:
- Polarity: NPNx2
- V(BR)CEO(V) min.: 30
- IC (A): 0.1
- hFE min.: 420
- hFE max.: 800
- VCE (sat)(V): 0.6
- IB (mA): 5
- fT(MHz) min.: 100
- PD(W) max.: 0.3
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: Transistors
Packing (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| SOT-363 | 8 | 178 | 3 | 0.093 | 210X210X200 | 45 | 1.59 | 440X440X230 | 180 | 7.4 |
